Module concrete plants
|
|
CONCRETE PLANT
MODULAR
FIXED

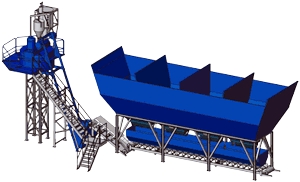

Type: TECHNOMIX
|
|
|
It is designed, manufactured and assembled according to the EC technological requirements.
"TECHNOMIX" provides fast access to the working ground, assembling and commissioning.
|
|
| Mixing container OMG |
P1000 |
P1500 |
P2000 |
| Maximum theoretical capacity output |
60m3/h |
75m3/h |
90m3/h |
| Maximum charge of the mixer |
2400 kg |
3600 kg |
4800 kg |
| Output capacity |
1 m3 |
1,5 m3 |
2 m3 |
| Binding substance (cement) dosimeter/kg |
500 kg |
700 kg |
900 kg |
| Placificators dosimeter |
20 kg |
20 kg |
40 kg |
| Water dosimeter/kg |
250 kg |
500 kg |
500 kg |
| Linear bunker battery (store) additive material |
100 m3 |
100 m3 |
100 m3 |
| Silo for the Binding substance (cement), fixed |
100 t |
100 t |
100 t |
|
The concrete mixing plant consists of three main units:
I. Mixing unit
The concrete mixing unit can be loaded with aggregates either through the charging unit
or through a parallel ramp charging.
II. Charging unit
Receiving bunker charged by a front charger
(with option to be charged by dumpers)
Capacity10 m3 ;
Vibrator facilitating the material draining away
- type MVE 500/3, 10.27 kgcm, 0.50 kw
Charging band conveyor
- motor reducer drive
- type TA 50-55 DA
- electrical value 15 Kw
Base of the charging unit, a semi-trail with 1 axis
A chassis, made of UPN 260
III. Operative unit, consisting of:
1. Control cabin
- insulation - thermal insulation panels (sandwich)
- air conditioning
2. Control panel with power and operative unit and operative option in modes:
- manual (service) mode
- semi-automated mode
- automated mode
3. Automation
|
|
|
