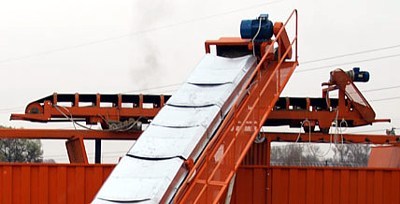

Distributing and loading belt conveyors

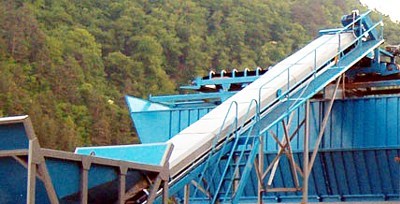

Distributing belt conveyor for loading to linear aggregate hopper (store)

Distributing belt conveyor for loading to linear hopper (store)
Leading (loading - LR) gearbox type А 412/TA
Electrical value 4 Kw
Leading (running LR) gearbox type А 409/ DA
Electrical value 2 Kw
L 6500 mm
B 1150 mm

Storage hopper, load through frontal loader (with possibility to loading with
dump trucks)
Storage hopper, load through frontal loader (with possibility to loading with dump trucks)
Storage capacity 10 м3
Motovibrator,conducive to drainage of material type MVE 500/3 10.27 kg/cm
Electrical value 0.50 Kw

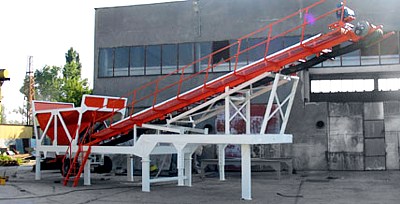

Loading belt conveyor
Loading belt conveyor
L 20000 mm
B 1150 mm
а 280
Leading gearbox type ТА 50-55 DA
Electrical value 15 Kw
